Models DCBDS-500 and DCBDS-1000 Dust Collector/Bag Dump Stations… for use with Acrison Metering/Hoppering Equipment

Process Application Request

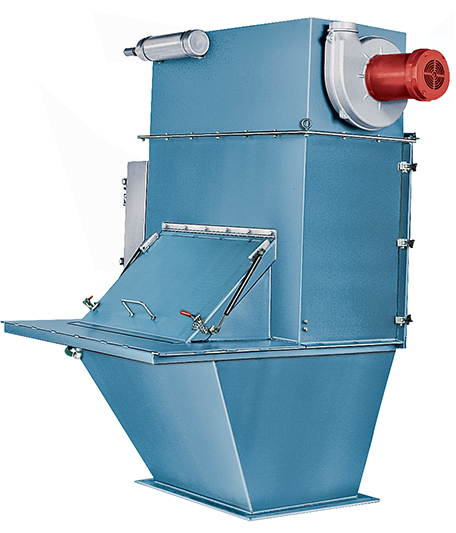

Model DCBDS-500-HT

Overview

Acrison’s Dust Collector Bag Dump Stations provide a clean, safe, and efficient means of collecting dust generated when emptying the contents of a bag into a dry solids storage hopper or metering system. Typically, the Dust Collector Bag Dump Station mounts directly onto the top of a feeder or storage hopper furnished by Acrison

When the loading hatch of the Bag Dump Station is opened, the Dust Collector’s blower energizes producing a negative air flow through the bag loading area, drawing dust generated by the bag emptying process into a filtering system where air/dust separation occurs. Only clean air is discharged.

Then upon completion of a bag emptying sequence and the loading hatch closed, the filter media is automatically cleaned by a reverse blast of dry, filtered compressed air produced by a pulse-jet system. Trapped material (dust) discharges into the hopper upon which the Dust Collector Bag Dump Station is mounted. The Model DCBDS-500-HT utilizes a single cartridge filter, and the Model DCBDS-1000-HT utilizes two.

Features/Benefits

• High Dust Collection Efficiency – collects 99.99% + of all dust entering filtering media and is capable of trapping particles as small as 0.3 microns
• Self-Cleaning Cartridge Filter System – returns trapped dust back into the hopper upon which it is mounted, recirculates filtered air back into the environment, and eliminates the need for special venting
• All Steel Construction – provides long-term reliability with minimal maintenance requirements

Specifications

• Various materials of construction
• Blower is powered by a constant speed heavy-duty totally enclosed motor
• Fabric filter area is 61 (Model DCBDS-500-HT) or 122 (Model DCBDS-1000-HT) square feet
• Requires 230/460/3/60 power supply and dry, filtered, non-lubricated compressed air (60-70 PSIG) for operation
